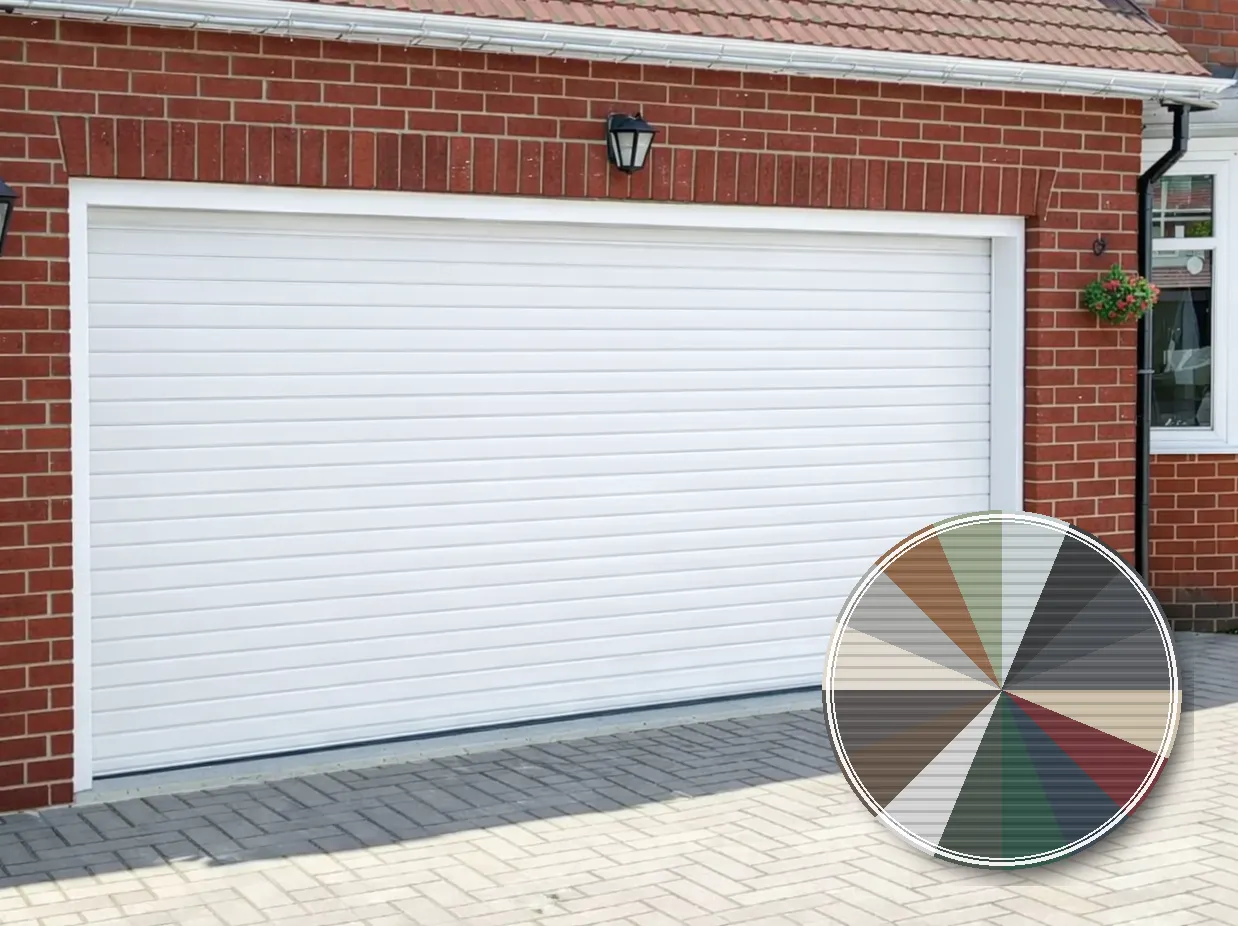

TWF Classic 77 Insulated Electric Roller Garage Door

Classic 77 is our 77mm insulated electric roller door for wider and larger garage openings. It uses a wider, deeper slat profile designed to give the curtain more stability across bigger spans, making it the right choice when a standard 55mm system is no longer enough. Built to your measurements in our Norfolk workshop, it is supplied as a complete DIY kit across the UK.

Build Your Classic 77 Garage Door

From £795 inc VAT for a Classic 77 door with electric motor and key switch controls. If you prefer remote operation, control and safety edge upgrades are also available in the Garage Door Builder. Your exact price is shown once you enter your measurements and options.

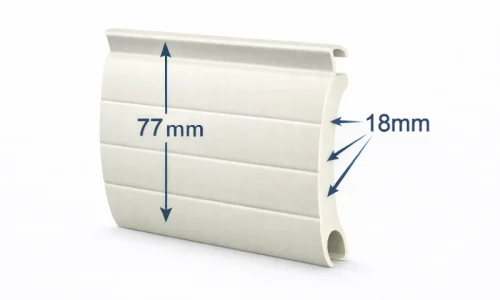

Classic 77 Specifications:

Slat height: 77mm
Slat thickness: 18mm
Curtain material: Insulated aluminium slats
Typical use: Wider single garages, double garages and larger domestic openings
Top box: 300mm
Maximum height: Up to 2600mm including a 300mm top box
Operation: Electric as standard

If you are unsure whether Classic 77 is right for your garage, compare it with Standard 55 and Premium 55, or use the Garage Door Builder for guidance.

classic-77-roller-door-slat

How Standard 55 Compares with Our Other Roller Door Options

standart-55-roller-garage-door

TWF Standard 55

55mm x 9mm insulated slat for typical single garages. Best value option where compact sizing and everyday insulation are enough.

twf-premium-55-roller-garage-door-brown

TWF Premium 55

55mm x 12.5mm insulated slat for single garages. The upgrade option when better insulation and a more solid feel matter more.

classic-77-roller-garage-door-white

TWF Classic 77

77mm x 18mm insulated slat for wider or double openings. Best suited to larger doors where width, span and curtain stability are the priority.

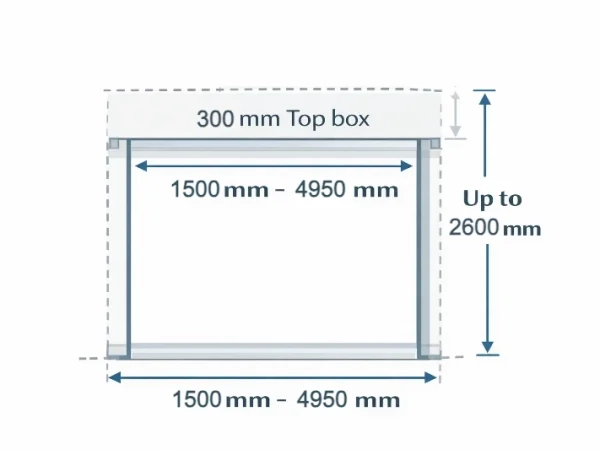

Sizes and Openings Classic 77 is Suited to:

Classic 77 is built to your measurements rather than fixed panel sizes and is normally chosen for wider garage openings, double garages and larger domestic door sizes.

Supported opening range:

Width: 1500mm to 4950mm, including guide runners
Height: Up to 2600mm including a 300mm top box

Because Classic 77 uses a larger top box and is designed for bigger openings, it is important to check that you have enough headroom above the opening before ordering.

The top box can be positioned behind the lintel when sufficient internal headroom is available, or below the lintel if clearance is limited. A below-lintel fit slightly reduces the clear drive-through height, but still provides a neat, colour matched finish.

Check how to measure your opening

sizes-openings-classic-77-roller-garage-door

What’s Included with a Classic 77 Kit:

Every Classic 77 door is supplied as a complete made to measure electric roller door kit.

Your kit includes:

  • Roller curtain manufactured from 77 x 18mm insulated slats
  • Side guides and end plates sized to your opening
  • Top box and motor assembly
  • Wall mounted key switch controls
  • Fixings and essential fitting components
  • Installation guidance and after-order support

If you upgrade Classic 77 to remote operation in the  Garage Door Builder, your kit will also include:

  • Receiver box with control buttons
  • Two remote controls
  • Safety edge system in either hard wired or wireless format, depending on your selection

Prefer someone else to fit it? We also offer local free survey and installation across Norfolk and Suffolk.

Colours and Finishes:

Classic 77 is available in a range of popular finishes, including white, grey, black and selected wood effect colours.

White is included as standard. Some upgraded finishes carry an additional charge, which is shown clearly in the Garage Door Builder when you make your selection.

Choose Colour Options in Garage Door Builder
55-standard-roller-garage-door-colour-palette

Frequently Asked Questions

Is Classic 77 insulated?

Yes. Classic 77 uses insulated aluminium slats, which help improve everyday comfort while giving the curtain a more robust feel across larger openings.

When should I choose Classic 77 instead of Premium 55?

Choose Classic 77 when the opening is wider, the door is larger, or you want the strongest curtain profile across a bigger span.

Will Classic 77 work for double garages?

Yes. Classic 77 is the option in the builder for wider and many double garage openings, with width bands running from 1500mm up to 4950mm including guide runners.

Can I fit Classic 77 myself?

Yes. Classic 77 is supplied as a complete DIY kit. Because the larger 77mm doors are heavier, we recommend having at least two people on hand, and 2 to 4 people for larger doors.
